Badger Meter water quality products deliver reliable, real-time monitoring solutions that help utilities and industrial facilities improve treatment efficiency, maintain compliance, and protect water quality.
Badger Meter water quality monitoring solutions provide accurate, real-time measurement of critical treatment and process parameters, including dissolved ammonia, dissolved oxygen, pH/ORP, and residual chlorine. Designed for potable water, wastewater, and industrial applications, these advanced monitors help utilities and facilities optimize treatment performance, maintain regulatory compliance, improve process control, and protect water quality through reliable continuous monitoring and actionable data insights.
Accurate, Reliable, Real-time Monitoring of Free and Total Ammonia

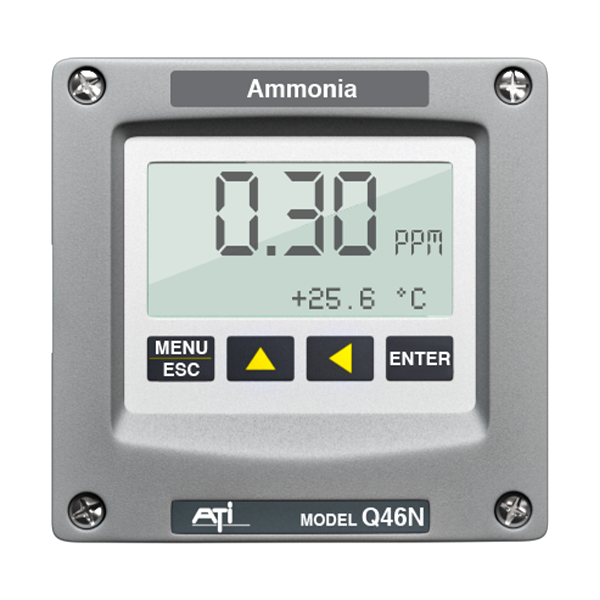

The Q46N Dissolved Ammonia Monitor provides accurate, real-time monitoring of Free and Total Ammonia for a variety of applications including potable water and wastewater effluent.
Continuous water quality monitoring of Ammonia is becoming increasingly important for plant operations and process control.
Many online Ammonia monitors are expensive, complex, and labor intensive and most are automated versions of ammonia selective ion electrodes methods, better suited to laboratory measurements. Others are automated colorimetric devices or instrumental methods that are difficult to justify on a cost basis.
However, we developed a completely new approach to online monitoring of Ammonia that is far less expensive and simpler than more conventional monitoring equipment. The Q46N Dissolved Ammonia Monitor uses reaction chemistry that converts Ammonia in solution to a stable monochloramine compound equivalent in concentration to the original Ammonia level. The chloramine concentration is then measured with a unique amperometric sensor that responds linearly to chloramines while eliminating interference from excess free chlorine in the solution.
Fast, real-time ammonia measurement
Simple, inexpensive reagents
All ammonia species measured
Verification capability on breakthrough applications
Improve Performance and Reduce Maintenance Costs

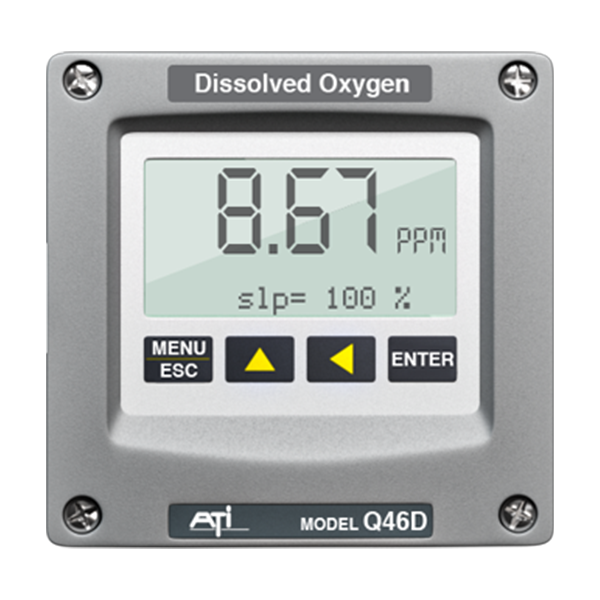

The Q46D Dissolved Oxygen Monitor is a versatile on-line monitoring system designed for the continuous measurement of dissolved oxygen (DO) in solution. Two types of sensing technologies are available for use with the Q46D system: Membraned Electrochemical and Optical (fluorescence). Both sensors will provide reliable long-term performance with minimal maintenance.
Dissolved Oxygen water quality monitoring is critical for aeration system process control.
Optimization of the biological process, whether it’s removal of organic material, nitrification, or nitrification/denitrification, depends on maintaining proper DO levels. Controlling air flow to within the optimal range eliminates excess aeration, which translates into significant energy savings.
The Q46D Dissolved Oxygen Monitor is designed to provide reliable oxygen measurement and help reduce operating costs. Two types of sensing technologies are available for use with the Q46D system: Membraned Electrochemical and Optical (fluorescence). Both sensors will provide reliable long-term performance with minimal maintenance. No hardware modifications are required to change from one sensor type to the other. The monitor can be configured for AC or DC power supplies, and a portable battery-powered unit is available to meet a variety of monitoring needs. When process conditions require frequent sensor cleaning, our unique Q-Blast Auto-Cleaner can be used to keep the system operating nearly maintenance-free. This time-proven system has been instrumental in providing years of worry-free operation.
Q-Blast AutoClean
Optical and galvanic options
All digital communications
Continuous Water Quality Monitoring of pH

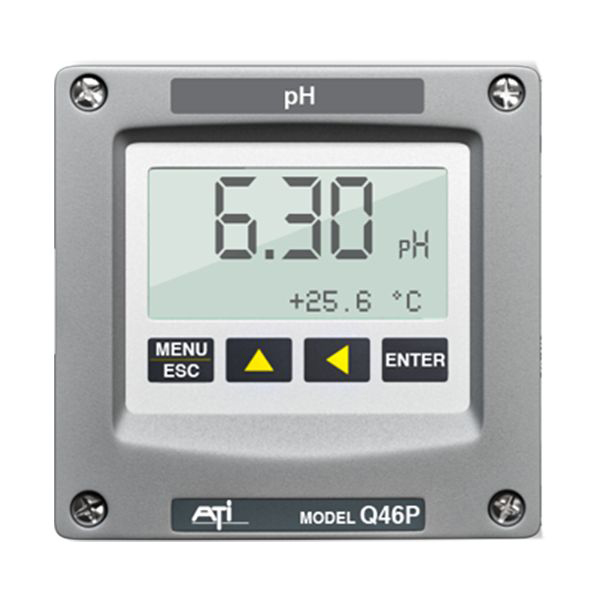

The Q46P pH water quality monitor provides the durability, accuracy and versatility required for pH monitoring or control applications.
The versatile Q46P/R system monitors the Potential of Hydrogen (pH) and Oxidation Reduction
Potential (ORP). The differential pH/ORP sensors make use of a sealed reference system – a second glass pH electrode – to help prevent the destruction of the sensor, from chemical poisons including sulfide, cyanide, chlorine and bisulfite.
Within the sensor, the integral preamplifier creates a low-impedance signal output. This helps to provide consistent readings in all environments, maximizing the distance between the sensor and analyzer.
The addition of our Q-Blast option provides the ideal answer for automatic pH or ORP sensor cleaning. Employing a unique’air-blast’ cleaning method, sensors can be cleaned as often as necessary without operator attention.
Differential or conventional pH sensors available
Automatic buffer recognition simplifies calibration
Q-Blast sensor cleaning option available
Multiple sensor mounting options
Continuous Water Quality Monitoring of Residual Chlorine

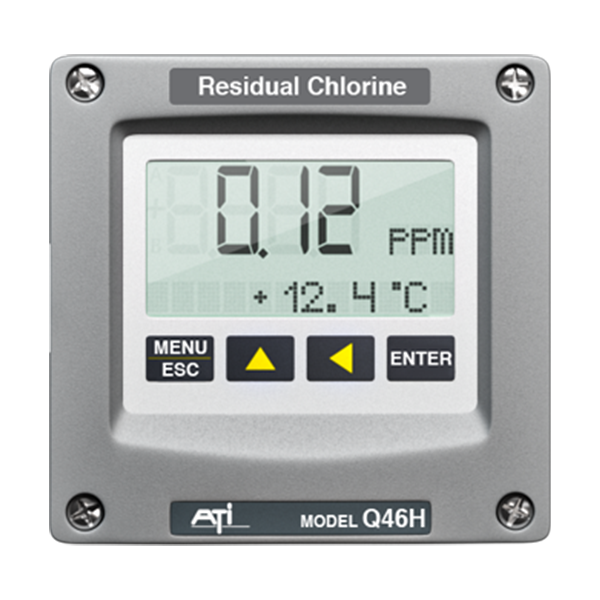

he Q46H/62-63 Residual Chlorine Monitor is the latest version of our Q45H system for continuous water quality monitoring of free or combined chlorine. These monitors offer expanded capabilities including additional analog outputs, low-power relay options, and digital communication via Profibus DP, Modbus RTU, or Ethernet IP.
The Residual Chlorine Monitor is an upgraded version of our proven Q45H system for continuous water quality monitoring of free or combined chlorine.
Monitor capabilities have been expanded to include options for a 3rd analog output or for adding additional low power relay outputs. Digital communication options for Profibus DP, Modbus RTU or Ethernet IP have been added, as well. The Q46H system uses a polarographic membraned sensor to measure chlorine directly, without the need for chemical reagents and an automatic pH compensation may be added for highest free chlorine measurement accuracy.
Q46H systems are economical to purchase, economical to maintain and provide long-term accuracy and reliability for your chlorine monitoring needs.
Free or combined chlorine
Automatic pH compensation
Reagent free
Dual Chlorine/pH Monitoring
Call our knowledgeable and experienced engineers for a custom quote at 855.373.9776.
