Badger Meter water meters are engineered to deliver exceptional accuracy, long-term reliability, and advanced performance across a wide range of municipal, commercial, and industrial water applications.
The Recordall® Disc Series is trusted for dependable low-flow accuracy in residential and light commercial service, while the Turbo Series is designed to handle high-volume flows with minimal pressure loss. The Recordall® Compound Series meters combine multiple measuring technologies to maintain precise measurement across varying flow rates, making them ideal for demanding commercial systems. For advanced smart water applications, the E-Series® Ultrasonic meters provide solid-state electronic measurement with no moving parts for increased longevity and data accuracy, while the M-Series® Electromagnetic meters offer highly accurate flow measurement for challenging industrial and large-scale water system applications. Together, these solutions provide utilities and facilities with the technology needed to improve efficiency, reduce water loss, and support modern AMR/AMI systems.

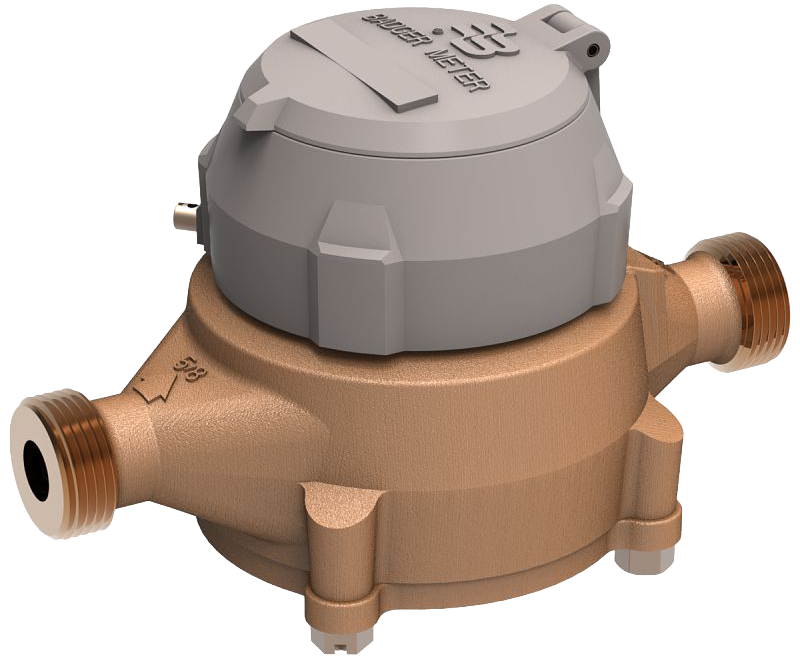

Nutating Disc Meters
Precision Accuracy. Long-Term Solution.
Recordall® Disc Series meters are an accurate, cost-effective solution for your metering needs. These positive displacement meters utilize the industry-leading nutating disc technology to drive accuracy and reliability.
Simple but efficient design makes this meter an ideal solution for measuring flow in your AMR/AMI system.
Long-Term Metering Solution. Reduced disc nutation rate decreases chamber wear and extends long-term accuracy.
Meter Housing Options. Available in both a lead-free bronze alloy and engineered polymer.
Reading System Compatible. Compatible with all Badger Meter reading systems offered as well as other approved technologies.

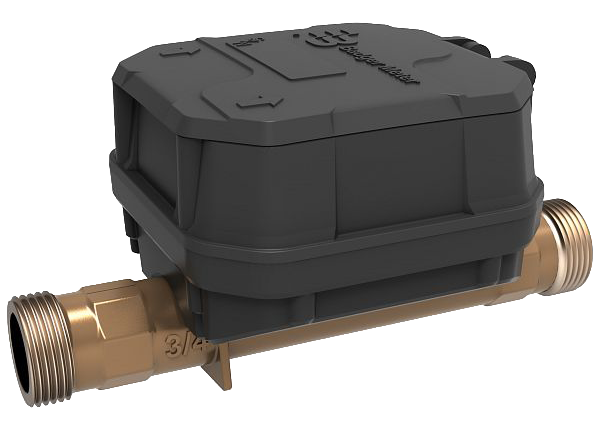

Residential Ultrasonic Flow Meters
Smarter Measurement, Stronger Performance
E-Series G2®DUltrasonic water meters use solid-state technology, ideal for residential and light commercial smart water applications. These meters have compact, encapsulated, weatherproof and UV-resistant housing and feature an easy-to-read, nine-digit LCD display.
E-Series G2® Ultrasonic inline meters for residential applications have no moving parts, which leads to improved reliability, increased performance and maximized revenue.
Ease of Use. Display reports consumption, rate of flow, reverse-flow indication, temperature, pressure* , alarm conditions and firmware versions. The meter has field programmable registration and an hourly internal logging capacity of 160 days of data.
Drive Revenue Gains. Offers long-term sustained accuracy within +1.5% and extended low flow accuracy within +3%.With high measurement accuracy, especially for low-flow conditions, these meters can help utilities limit unaccounted-for water and capture additional revenue over the course of their 20-year battery life.
Advanced Data. Pressure* and temperature data and alarms report at the meter and through ORION® Cellular endpoints and BEACON® SaaS for increased visibility into water distribution systems.
* Available with an optional integrated pressure sensor

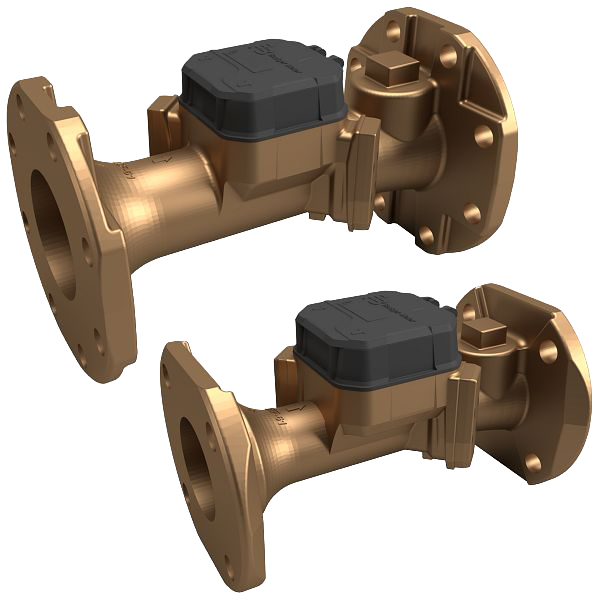

Commercial Ultrasonic Flow Meters
High Measurement Accuracy. Maximizes Revenue.
E-Series G2® Ultrasonic water meters are designed for high measurement accuracy and long-term reliability. They are ideal for measuring potable cold water in commercial and industrial applications with rapid fluctuations in water demand.
E-Series G2® Ultrasonic inline meters for commercial applications give utilities greater insight into their smart water systems. With no moving parts, downtime is limited and accuracy is ensured for the life of the meter.
Pressure and Temperature Data
Pressure and temperature data and alarms are displayed at the meter and reported through ORION® Cellular endpoints and BEACON® SaaS for increased visibility.
Long-Term Reliability
Features self-diagnostic alarms and alerts with an internal logging capacity of 160 days of data. With extended low flow accuracy, these meters can help utilities limit unaccounted-for water and improve billing accuracy over their 20-year battery life.
Wider Flow Range
Offers a greater turndown ratio for extended flow. Consumption is accurate to ‡1.5% over the normal flow range and +3.0% from the extended low flow range to the minimum flow value.

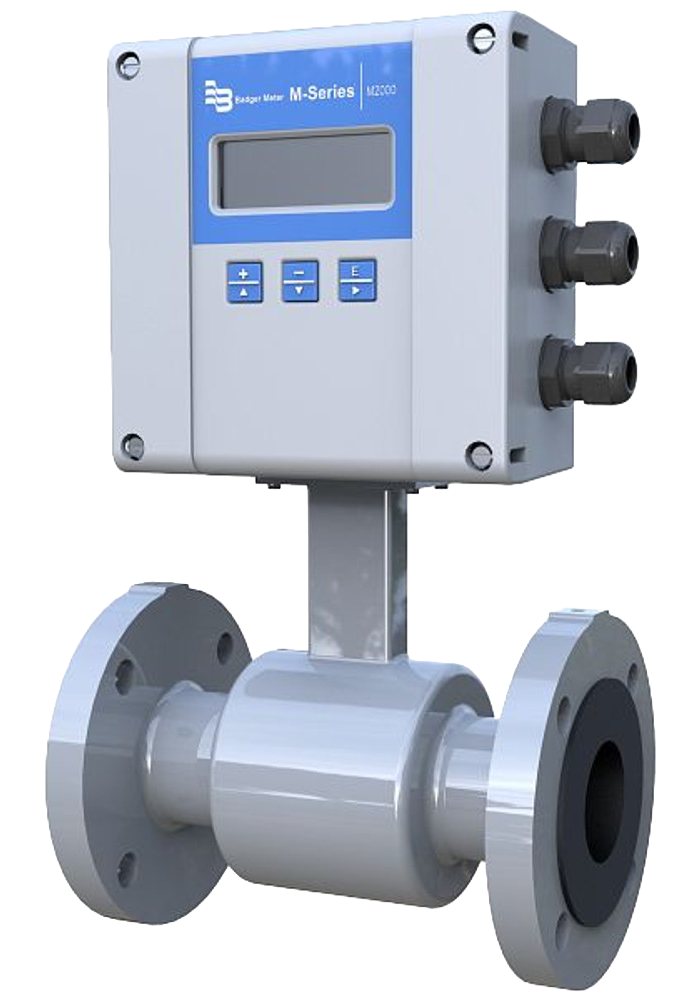

Improve Accuracy. Decrease System Maintenance.
Electromagnetic flow meters manage critical flow applications to improve accuracy, decrease system maintenance and meet the demands of challenging liquid conditions. This volumetric flow meter does not have any moving parts and is ideal for wastewater applications or any dirty liquid that is conductive or water-based.
Electromagnetic meters are a leading choice to deliver the performance and precision your applications require.
Minimal Maintenance. Has no moving parts or flow obstructions, which virtually eliminates maintenance and pressure drops.
Impressive Accuracy. Provides accuracy readings up to +0.20% of the measured value.
Wide Turndown Range. Features a wide turndown ratio up to 400:1, providing wide flow range capabilities across a variety of applications.

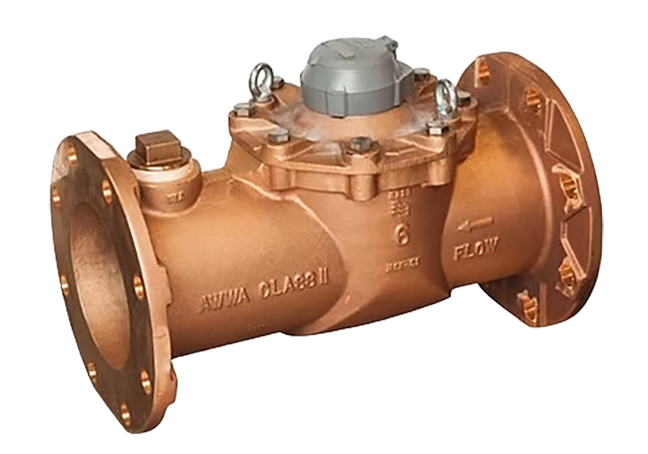

High-Flow Applications
The Smart Choice for Larger Applications.
The Recordall® Turbo Series meters are the smart choice for larger facilities, including hotels, apartment buildings, and commercial and industrial buildings. The direct-coupled turbine uses an exclusive floating rotor design that reduces bearing friction and associated wear to provide greater accuracy and a longer service life.
Reduces day-to-day maintenance and replacement costs, while capturing non-revenue water through greater accuracy and efficiency.
Exclusive “Floating Rotor” Design. Reduces bearing friction and associated wear and tear.
Improved System Efficiency. Low pressure loss for improves efficiency.
Reading System Compatible. Compatible with all Badger Meter reading systems offered as well as other approved technologies.

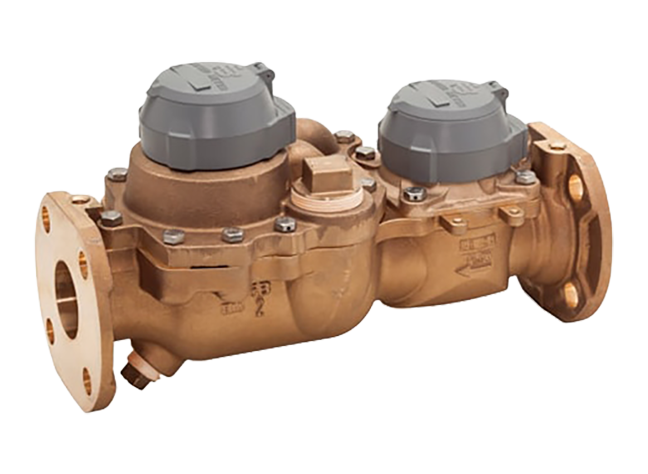

Combined Low/High Flow
Two Metering Technologies. One Innovative Package.
Recordal® Compound Series meters combine two metering technologies in one innovative package. A positive displacement chamber measures low flow, while a turbine chamber records high flow. These meters are an ideal choice for facilities that experience rapid and wide fluctuations in water demand, such as hospitals, universities, residential complexes and manufacturing or processing facilities.
An ideal choice for measuring potable cold water in commercial and industrial applications where flow is in one direction only.
Patented Design. Eliminates the need for a trigger valve and maintains high crossover accuracy.
Versatile Solution. Meets or exceeds accuracy on low, normal operating and high maximum continuous flow ranges.
Reading System Compatible. Compatible with all Badger Meter reading systems offered as well as other approved technologies.
Call our knowledgeable and experienced engineers for a custom quote at 855.373.9776.
