FLOW MEASUREMENT

Badger Meter flow measurement products deliver accurate, dependable monitoring across a wide range of water and industrial applications, helping utilities and facilities optimize system performance, improve efficiency, and make informed operational decisions.

The Dynasonics® TFX-5000 Clamp-On Ultrasonic Flow Meter and IS-4000 Open Channel Flow Meter provide reliable, accurate flow measurement for a wide range of water and wastewater applications. The TFX-5000 uses non-invasive ultrasonic technology to measure flow without cutting into the pipe, reducing installation time, maintenance requirements, and system downtime. The IS-4000 delivers precise open-channel flow monitoring for applications such as wastewater treatment plants, stormwater systems, and irrigation channels, combining advanced sensing technology with easy integration into existing monitoring networks. Together, these meters help utilities and industrial users improve operational efficiency, data collection, and system performance.

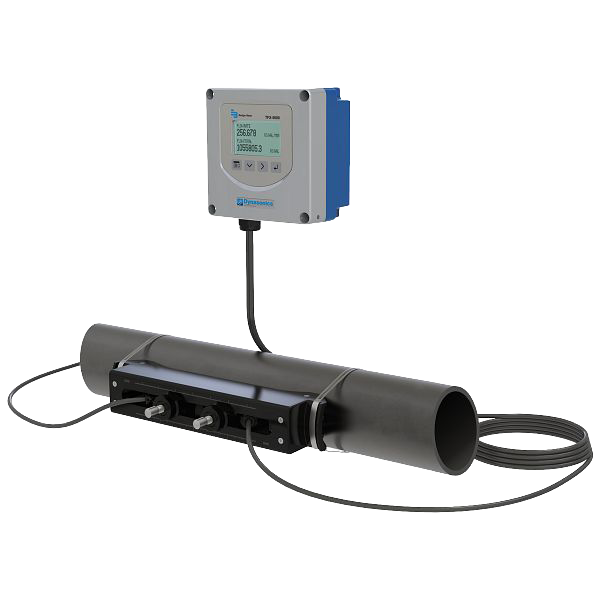

Dynasonics® TFX-5000 Clamp-On Ultrasonic Flow Meter

Simple Clamp-on Design Streamlines Installation

The Dynasonics® TFX-5000 Ultrasonic clamp-on flow meter is quickly and easily installed without cutting or tapping the pipe. This highly capable meter provides advanced features without breaking your budget.

Size Range

1/2...48 in.

Temperature Range

-40...350° F

Flow Range

0.7...33,000 gpm

Accuracy

± 0.5% ±0.025 ft/s (0.008 m/s)

The Dynasonics TFX-5000 Ultrasonic clamp-on flow meter reduces installation time and cost because operations can continue during installation, which can be completed in under an hour by a single person.

Non-Invasive/Non-Contact. These meters easily attach to a pipe’s exterior and are secured in place without ever penetrating the pipe or coming in contact with the internal liquid. This feature is especially beneficial in settings where the liquid should not be exposed, such as caustic liquids, raw sewage or ultrapure water.
Flexible Configuration. Available in a variety of configurations, allowing you to select the meter that’s best for your specific application.
Minimal Maintenance. Has no moving parts, which virtually eliminates the need for maintenance or part replacement over the meter’s lifetime
Enhanced Data. Offers BACnet MS/TP (BACnet Testing Laboratories (BTL) Certified), BACnet/IP, EtherNet/IP and Modbus TCP/IP communication protocols and seamlessly integrates into existing operations to provide enhanced data points.

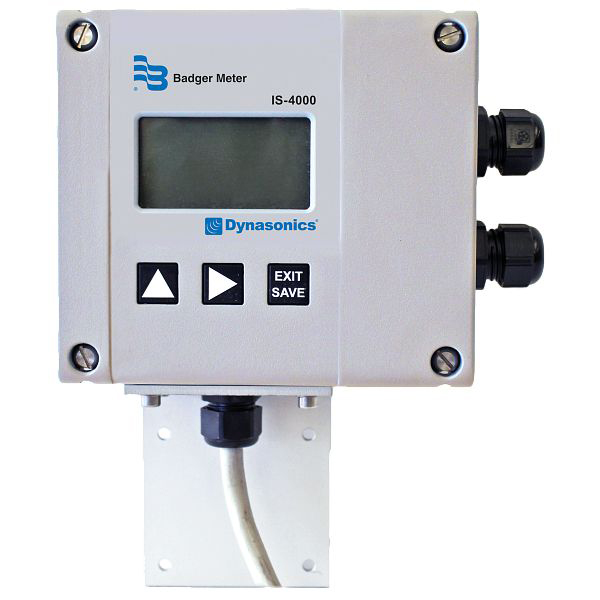

Dynasonics® IS-4000 Open Channel Flow Meter

Simple Setup. Accurate Measurements.

The Dynasonics® IS-4000 Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs and flumes. It’s ideal for applications where sediment does not build up.

Size Range

1...60 in.

Temperature Range

20...140° F

Flow Range

13.2...24,381 gpm

Pressure Range

Up to 30 PSI

The Dynasonics IS-4000 Open Channel flow meter is an economical solution that includes a non-contact ultrasonic level sensor to detect water level and then calculates flow rate and total volume.

Precise Measurements. Measures water level, flow rate and total volume with a single device and retains a historical log of all measurements.
Reliable Operation. Features preprogrammed tables to simplify setup and calculates flow rate based on the geometry of the channel or primary element and water depth.
Application Flexibility. Performs best where sediment does not build up, including flow into water treatment plants, storm and sanitary sewer systems and industrial discharge applications.

FPGwater
Brochure

Custom Quote

Call our knowledgeable and experienced engineers for a custom quote at 855.375.8776.
